The Gauge object is report layout object found in the reporting .
|
Attributes
|
|
The Attributes section includes the object name.
|
Name
|
Enter a name for the object. This is the name of the object as it will show in field chooser, the Navigation panel and other object lists.
|
|
Behaviors
|
|
The Behavior section lists possible events on the object that can prompt a behavior to run.
|
Gauge is clicked
|
This event occurs when an app user clicks on the object.
|
Gauge is shown
|
This event occurs when the object is shown. This is often when the object's page is opened.
|
|

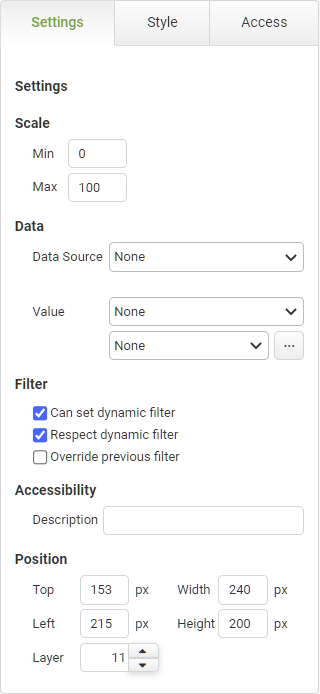

Settings
|
|
The settings section includes the , fields to report on, filtering, accessibility and positioning of the object.
|
Gauge Settings - Scale
|
Object
|
Details
|
Additional Information
|
Min
|
Specifies the minimum extent of the gauge's scale. Set this according to the likely values used.
|
|
Max
|
Specifies the maximum extent of the gauge's scale. Set this according to the likely values used.
|
|
Data
|
Data Source
|
All reporting objects must point to a data source. If you only have defined one then this will be automatically selected.
|
|
Value
|
The aggregate function used to calculate the cell content (Sum, Count etc.) and the field or field expression that the function applies to.
|
|
Filter
|
Can set dynamic filter
|
This means that a selection within the object causes the filter event to be broadcast to other objects within the report that have the Respect Dynamic Filter set.
|
|
|
Multiple dynamic filters are applied with the AND or the OR operator depending on the selection made in the data source.
|
|
Respect dynamic filter
|
Causes the object to listen to any drill-down filter that is caused by the user clicking on a report object that has the Can Set Dynamic Filter option selected. If you do not want the object to filter its data when the drill-down occurs then turn off this property.
|
|
Override previous filter
|
By default, each object that you click on for a drill-down filter remains in effect when subsequent objects are selected. In other words, the drill-downs you select are cumulative. However, you may want a drill-down selection to clear all other existing drill-down filters before performing its own drill-down. In this case, you would check the Override Previous box.
|
|
Accessibility
|
Description
|
Enter text that will be read aloud or converted to Braille for JAWS users.
|
Accessibility and JAWS Compatibility
|
Position
|
Top
|
Displays the object's location in from the top of the app (in pixels).
|
|
Left
|
Displays the object's location in from the left margin of the app (in pixels).
|
|
Width
|
Shows the width of the object.
|
The width cannot be less than 100px.
|
Height
|
Shows the height of the object.
|
The height cannot be less than 150px.
|
Layer
|
Indicates the layer number this object occupies. You can drag an object so that it fully or partially covers another object. Depending on the layer number it occupies, it may be positioned underneath another other object.
|
|
|

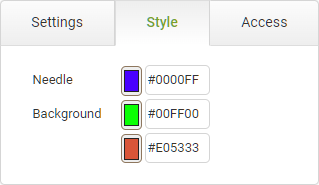

Style
|
|
The Style section contains properties that control the gauge and needle color.
|
Object
|
Details
|
Additional Information
|
Needle
|
Enter a Hex color code or click on the color box to pick a color for the gauge needle.
|
|
Background
|
Enter a Hex color code or click on the color box to pick a color for the gauge background.
There are two color pickers available for this, enabling you to add duo-tone color gradation. The first controls the color for the left half of the gauge and the second controls the color for the right half of the gauge. For either color picker, you may enter a Hex color code or click on the color box to select the desired color.
|
|
|
Access
|
|
The Access section contains properties for field state management.
|
State
|
Object
|
Details
|
Additional Information
|
|
|
Choose from Default, Normal or Hidden for Gauge objects..
|
|
|
To return to the Gauge object details CLICK HERE.
